FablnxThe AI copilot for structural steel

Upload a contract drawing. Let the copilot find the steel. Trace it into a coordinated 3D model with a full material takeoff — all in one workspace.

📄

Read any drawing set

Drop in a contract PDF and the copilot reads every sheet — scanned images or native vector drawings — and sorts the steel structural pages from the noise.

Files & pages

🤖

An AI copilot that does the grunt work

Triage sorts the sheets and Lectora reads the general notes automatically. Inside a scene, detection finds the grid, the columns and the beams so you review instead of retype.

Meet the copilot

✏️

Trace the model on the drawing

A precise 2D editor lets you place grids, dimensions, columns, beams and braces right over the drawing, with snapping and progressive unlock.

Scene editor

🧊

A coordinated 3D model

Commit your traced facts into one coordinated model you can orbit, section, measure and color — the way a detailer expects.

3D model viewer

📐

Design spec, extracted for you

The general notes are read into a clean AISC design spec panel — grades, bolts, welds and defaults, without hunting through pages.

Design spec

⚠️

RFIs that point at the problem

Validation surfaces conflicts and missing information as tracked RFIs, each of which jumps you straight to the spot on the drawing.

RFIs

📊

Material takeoff in a click

Every member rolls up into an advanced bill of materials — mark, quantity, profile, grade, length and weight — exportable to CSV.

Material takeoff

⌨️

Built like an IDE

Tabs, split views, a command palette and keyboard shortcuts throughout — a workspace that gets out of your way.

The workspace

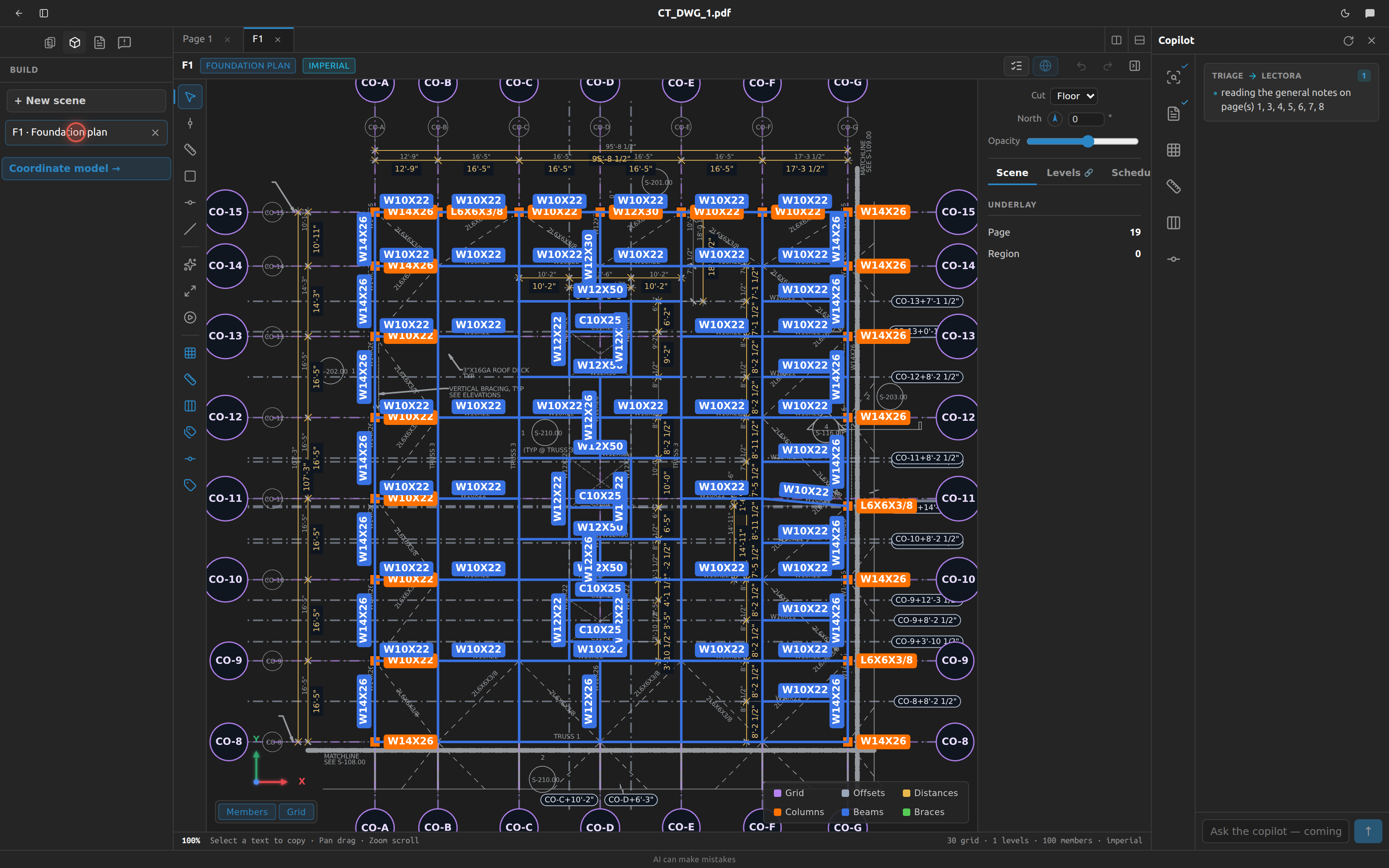

Scene editor — trace grids, columns and beams over the drawing

Coordinated 3D model — orbit, section, measure and colour

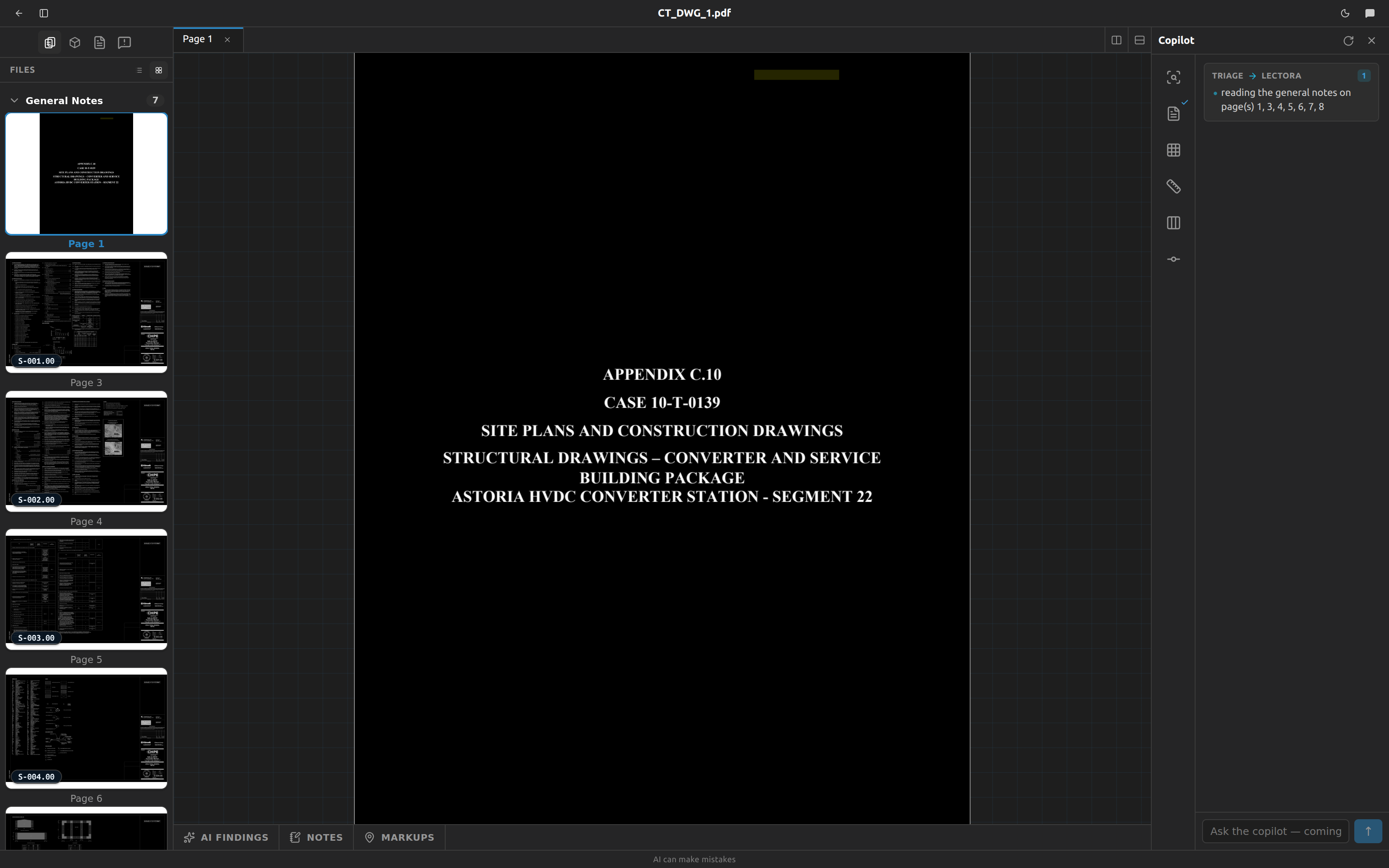

The workspace — files, drawing, and the AI copilot side by side

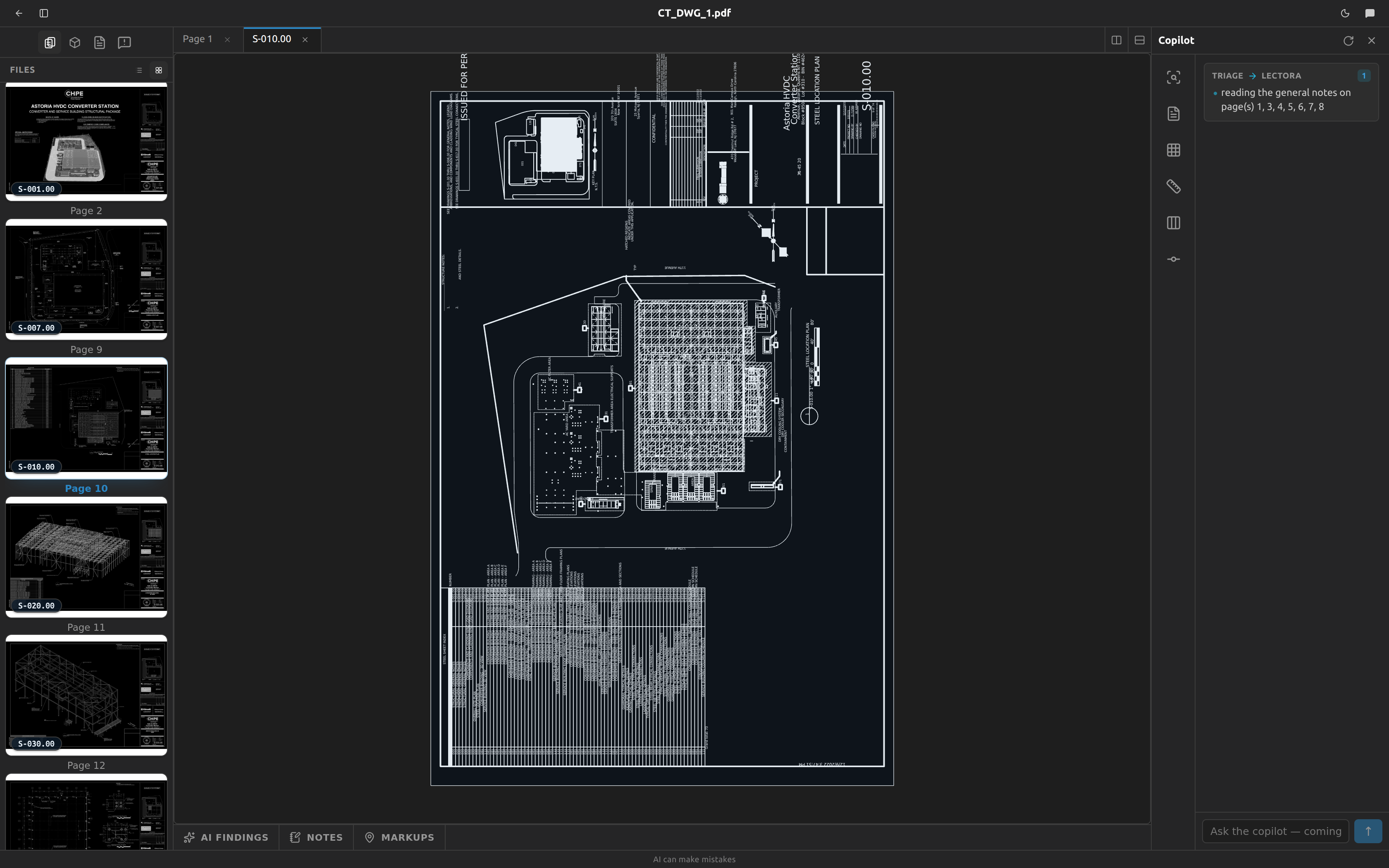

Page viewer — read any sheet, zoom, and mark it up

Design spec — the steel grades, extracted for you

RFIs — conflicts and missing info, one click from the drawing

Material takeoff — a full bill of materials, exportable to CSV

1 / 7

Scene editor — trace grids, columns and beams over the drawing
